THE KING OF CRIMPERS
The King Crimper’s extremely large opening and enormous crimping force coupled with the world’s most advanced crimping control means there are literally no limitations to what it can crimp. The King Crimper’s robust frame design ensures consistent repeatability. The ICC Control on a swing arm and remote control device allows the operator to crimp hard to crimp objects and while keeping them safe and in control of the process. The primary markets for ‘the King’ are oil & gas and transportation for crimping pipes, tubes and fittings.
Control:
ICC (12” touchscreen)
Standard Features:
Foot pedal
Adapter dies (for 170-series die sets)
Auto greasing G3
Remote control unit
Pressure crimping ICC1
Step crimping ICC2
Quality control ICC3
Graphical quality control ICC4
Interface pack ETH (Communication TCP/IP & UDP)
Camera
Bar Code Reader BCR
Options:
Oil Condition Monitor OCM
Safety scanner
Adapter dies (for 160-series die sets)
Oil cooler

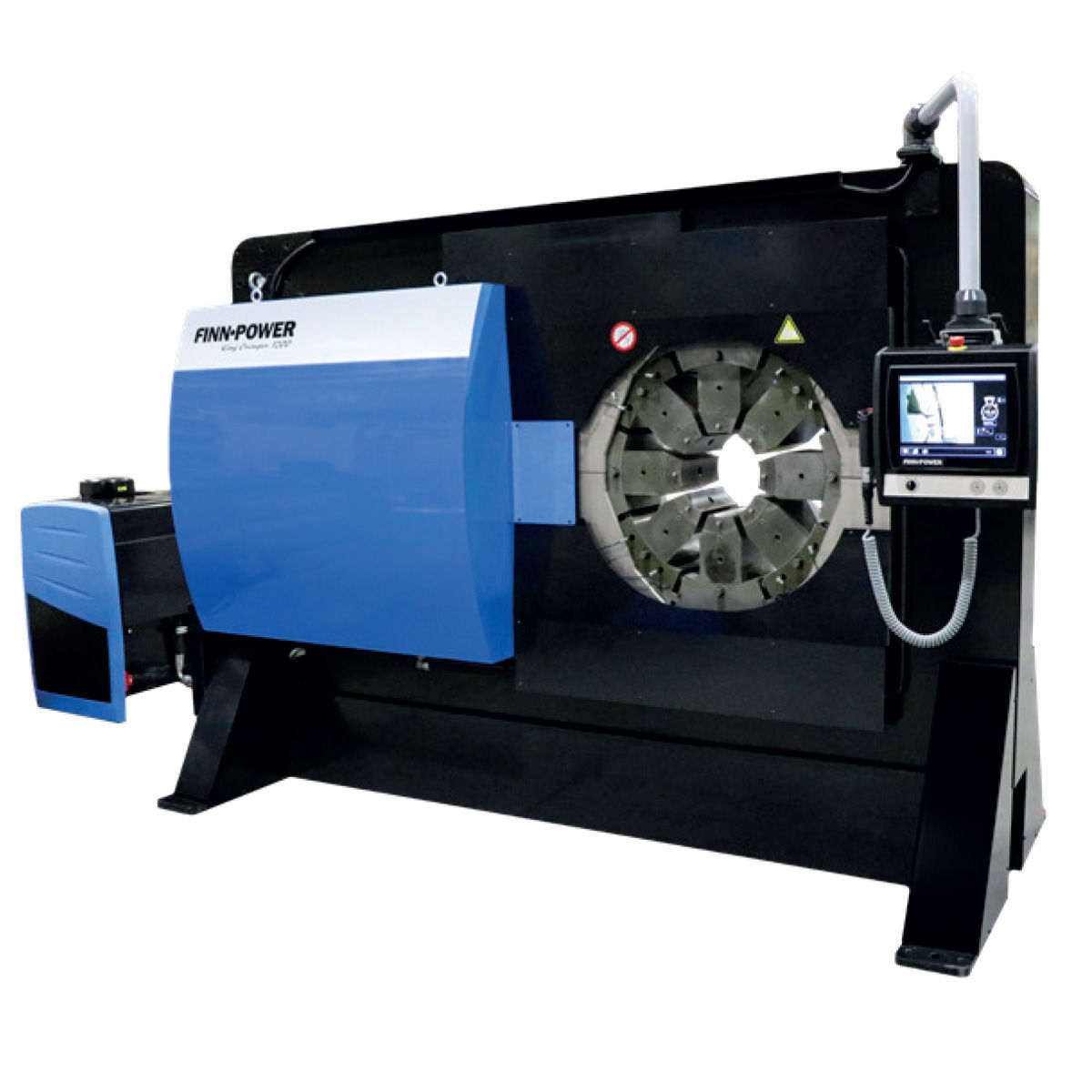

KC2000
Crimping Range (1) 200-650mm Max crimping force 20000kN Cycle time 10 mm (s) (2) 7.7 Hose size ID 16" Die set series (3) 160 (5) / 170 Max. opening (4) +180mm Max opening without dies 820mm Master die D/L 640/300mm Motor Power 11 kW Oil tank volume 250L Dimensions (Machine)
Length
Width
Height
3380mm1345mm
2361mm
Dimensions (Hydraulic Unit)
Length
Width
Height
1195mm
705mm
1411mm
Weight (Machine) 15500Kg Weight (Hydraulic unit) 305Kg 1) With standard dies. Crimping range can be increased with special dies.
2) Theoretical with 10 mm cycle.
3) See table for die set data.
4) Maximum opening is the total die travel. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with die set in place.
5) With adapter dies.
